Tutorial 9

FOL inference

Exercise sheet 12 questions

Valid inference

Decide whether each inference is valid. Use the definition of Chapter 9 · first-order consequence: could the premises all be true while the conclusion is false? Select a formula and unfold its truth conditions. The picture records the facts established so far. If a truth condition allows two possibilities, investigate each case. Look for conflicting requirements or a model that meets them all.

Enable JavaScript to use the model canvas. The definitions and worked examples remain available.

Enable JavaScript to use these exercises.

Countermodels

Show that the following FOL inferences are invalid by constructing a countermodel. Make every premise true and the conclusion false. The levels cover the converse fallacy, quantifier order, distribution, separate witnesses, generalization, and negation.

Use Modify to change the domain and predicate interpretations. The predicate names impose no conditions beyond the premises. Check tests your model; change the interpretation and try again if a premise is false or the conclusion is still true.

Enable JavaScript to use the model canvas. The definitions and worked examples remain available.

Enable JavaScript to use these exercises.

Reasoning in models

These inferences are valid. Give a proof of each by reasoning in an arbitrary model of its premises. State which objects you choose, which facts follow from the premises, and why the conclusion holds. Your argument must apply to every domain size.

  1. ∀x (Human(x) → Mortal(x)), Human(Socrates) ∴ Mortal(Socrates).
  2. ∀x (Human(x) ∧ Mortal(x)) ∴ (∀x Human(x)) ∧ (∀x Mortal(x)).
  3. ∃x∀y Sibling(x,y) ∴ ∀y∃x Sibling(x,y).

Solution

  1. In any model of the premises, the object named Socrates is human. The universal premise makes that object mortal.

    Enable JavaScript to use the model canvas. The definitions and worked examples remain available.

  2. Choose an arbitrary domain object. The premise makes it both human and mortal. Since the choice was arbitrary, every object is human and every object is mortal.

    Enable JavaScript to use the model canvas. The definitions and worked examples remain available.

  3. Choose a witness a for the existential premise. Given any domain object d, the premise makes Sibling(a,d) true. Thus a witnesses the existential conclusion for every choice of d.

    Enable JavaScript to use the model canvas. The definitions and worked examples remain available.

Unification

In each level, choose a most general unifier or the reason no unifier exists. Check your choice before moving to the next level. The symbols Munich, Milan, Rome, Mary, Jane, and London are constants; fatherOf and motherOf are unary function symbols. Functions and predicates use argument brackets.

Solution

  1. [x/Munich,y/Milan,z/Rome] matches the three argument positions.
  2. No unifier: the repeated x would have to match both Mary and Jane.
  3. No unifier of the literals: their signs differ. Resolution instead unifies the atoms of opposite-sign literals.
  4. [x/London,y/motherOf(London)]. Substitution is simultaneous, so leaving x in the replacement for y would not give a unifier.
  5. No unifier: x occurs as a proper part of fatherOf(x).
  6. [x/fatherOf(y)]. Fixing y to a particular constant would give a less general unifier.

Robinson’s Algorithm

Use Chapter 9 · Robinson's algorithm to solve the levels below. Click an equation in the box, then apply an operation. The buttons follow the cases in the chapter: Delete, Occurs, Eliminate, Orient, Clash, and Decompose. Eliminate substitutes the right-hand term for the variable on the left and updates the accumulated substitution. Try another valid order using Undo. For literals, first check their signs; then compare their atoms.

As additional checks, explain the outcomes for x ≐ y, f(x) ≐ f(y), x ≐ f(x), and f(x) ≐ g(x).

Explain why deleting identical pairs before the occurs check is necessary.

Solution

  1. Socrates: decompose the atoms and record [x/Socrates].
  2. Composition: record [y/f(x)], then [x/a]. Updating the earlier replacement gives [x/a,y/f(a)].
  3. Occurs check: x ≐ f(x) fails because a finite term cannot contain itself as a proper part.
  4. Symbol clash: f and g are different fixed symbols.
  5. Cities: orient Munich ≐ x, then eliminate the variables to obtain [x/Munich,y/Milan,z/Rome].
  6. Repeated variable: matching the first arguments forces x/Mary; matching the second then requires Mary ≐ Jane, a symbol clash.
  7. Nested functions: decompose, orient motherOf(x) ≐ y, and record [y/motherOf(x)]. The remaining pair gives [x/London]. Compose to obtain [x/London,y/motherOf(London)].
  8. An identity: record [x/fatherOf(y)]. The other pair becomes identical and can be deleted.

Delete x ≐ x before the occurs check: the expressions already agree, so no replacement is required.

Skolemization

Skolemize each formula. Start with a constant witness, then work through dependencies, separate scopes, and nested negation. Choose each subformula by clicking its main connective or quantifier, then apply an operation to the highlighted scope. When replacing an existential, enter the whole witness term, such as sk₁ or sk₁(x). Explain why each argument is in scope.

For each result, explain why Skolemization preserves satisfiability. Give a model showing why it need not preserve equivalence.

Solution

For levels 8–10, one choice of fresh symbols gives:

  1. Human(sk₁) ∧ ∀y Mortal(y), after renaming the second binder.
  2. ∀x(∀y(IsFriendOf(x,sk₁(x,y)) ∧ IsFriendOf(y,sk₁(x,y))) ∨ ¬IsFriendOf(x,sk₂(x))). The second existential is outside the scope of ∀y.
  3. IsFriendOf(sk₁,sk₂), with two fresh constants. Their interpretations may coincide.

If a model satisfies ∃x Human(x), we can interpret the fresh constant sk₁ as one of its humans. Then it also satisfies Human(sk₁). Conversely, Human(sk₁) guarantees a human exists. But if we instead interpret sk₁ as a nonhuman, the original sentence stays true while the Skolemized one is false.

A library knowledge base

A library uses these rules:

  • A member may borrow an item they have reserved.
  • A librarian may borrow an item they have approved.
  • Anyone who may borrow an item can collect it.

Ada is a member and has reserved the Atlas. Emmy is a librarian and has approved the Atlas. Use resolution to establish that Ada can collect the Atlas. The first two levels use the following formalization, with Ada and Emmy as the respective subjects of the conclusion:

PremiseFormula
Members∀x∀y ((Member(x) ∧ Reserved(x,y)) → MayBorrow(x,y))
Librarians∀x∀y ((Librarian(x) ∧ Approved(x,y)) → MayBorrow(x,y))
Collection∀x∀y (MayBorrow(x,y) → CanCollect(x,y))
AdaMember(Ada); Reserved(Ada,Atlas)
EmmyLibrarian(Emmy); Approved(Emmy,Atlas)

The remaining levels ask you to derive an ancestry relation, the existence of a research project, and access granted by either of two rules. Each inference is already formalized. Derive the empty clause from its prepared clauses.

Select opposite-sign literals in two clauses and choose Resolve. Each substitution must apply to the entire resulting clause.

Solution

For Ada, resolve the membership rule with Member(Ada), then with Reserved(Ada,Atlas), to obtain MayBorrow(Ada,Atlas). The collection rule gives CanCollect(Ada,Atlas), which contradicts the negated conclusion. For Emmy, use the librarian rule with Librarian(Emmy) and Approved(Emmy,Atlas); the final two inferences are the same.

Drinker Paradox

Consider the following inference:

∃x InPub(x) ∴ ∃x(InPub(x) ∧ (IsDrinking(x) → ∀y(InPub(y) → IsDrinking(y)))).

There is somebody in the pub. Does it follow that there is somebody in the pub such that, if they are drinking, everybody in the pub is drinking?

Negate the conclusion, move negations inward, and Skolemize. Write the resulting clauses as disjunctions and derive ⊥ using resolution. Compare your result with the starting clauses below.

Select two literals directly in the clause box, then resolve them. For factoring, select two same-sign literals in one clause. Undo takes back the last inference.

Solution

Write P for InPub and D for IsDrinking. Negating the conclusion gives:

∀x (¬P(x) ∨ (D(x) ∧ ∃y (P(y) ∧ ¬D(y)))).

The premise supplies a fresh constant sk₁. In the negated conclusion, use sk₂(x) for the existential witness. After distribution, the clauses are:

  1. P(sk₁).
  2. ¬P(x) ∨ D(x).
  3. ¬P(x) ∨ P(sk₂(x)).
  4. ¬P(x) ∨ ¬D(sk₂(x)).

Resolve the last two clauses with P(sk₁) to obtain P(sk₂(sk₁)) and ¬D(sk₂(sk₁)). A fresh use of the second clause gives D(sk₂(sk₁)), which completes the refutation. Follow the checked derivation on the canvas:

The premise supplies the starting witness. If nobody is in the pub, the existential conclusion is false, even though our domain itself is nonempty.

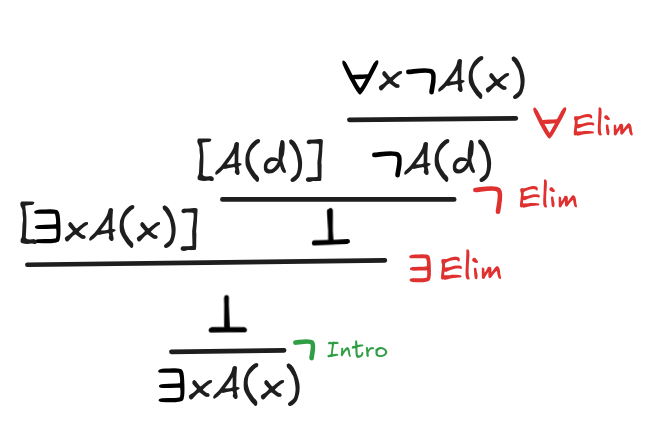

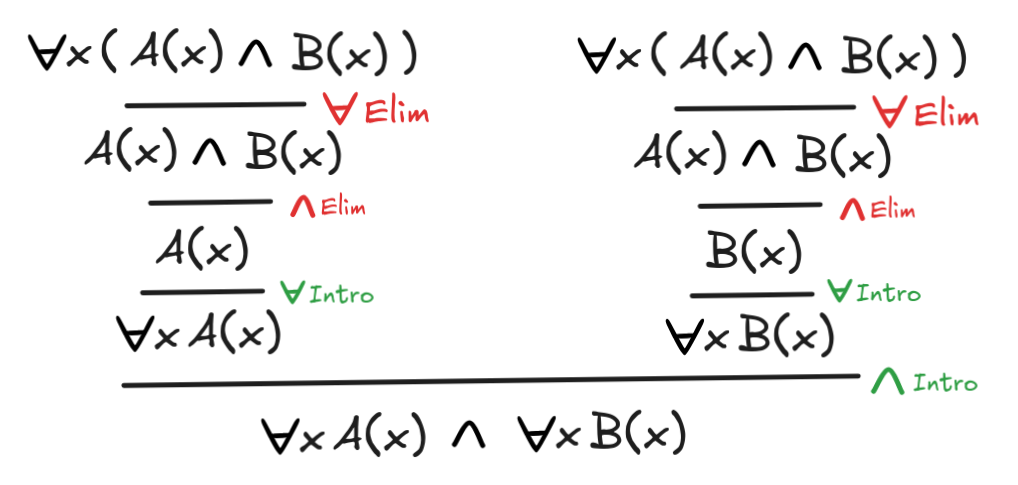

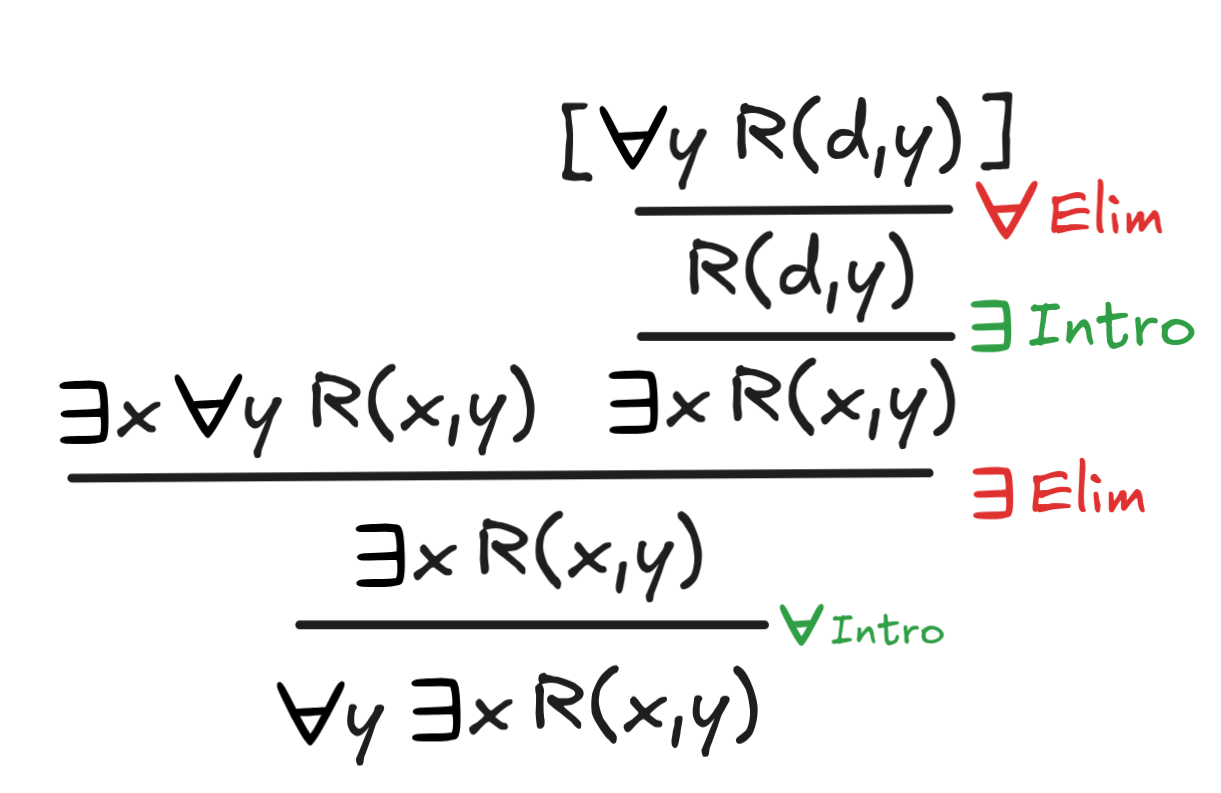

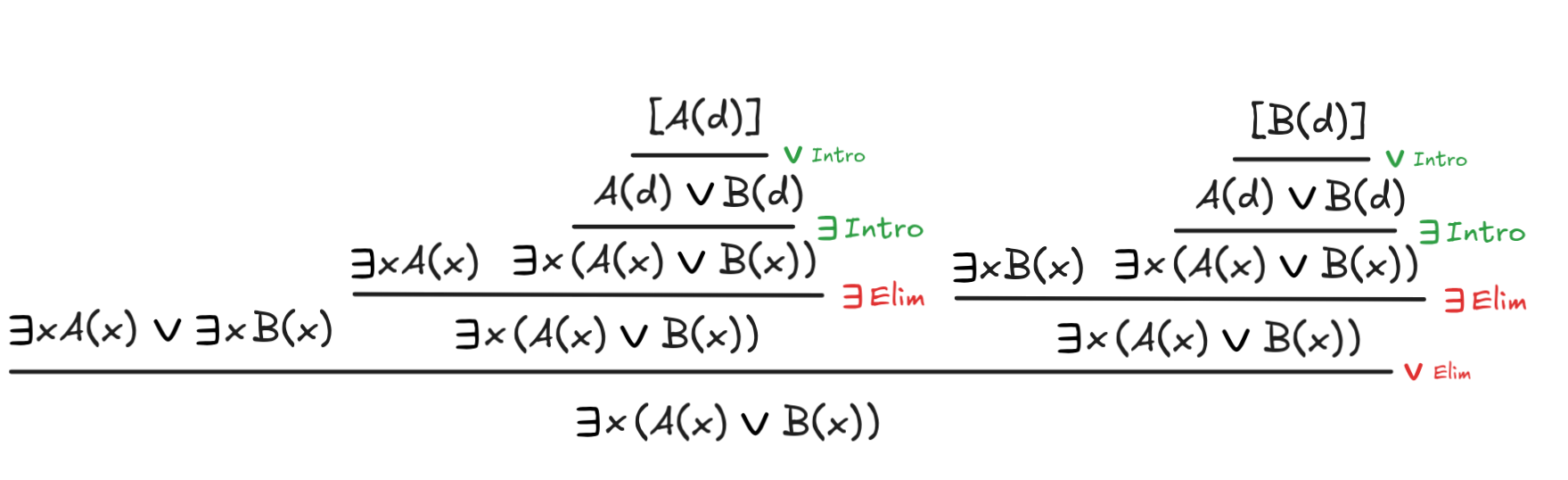

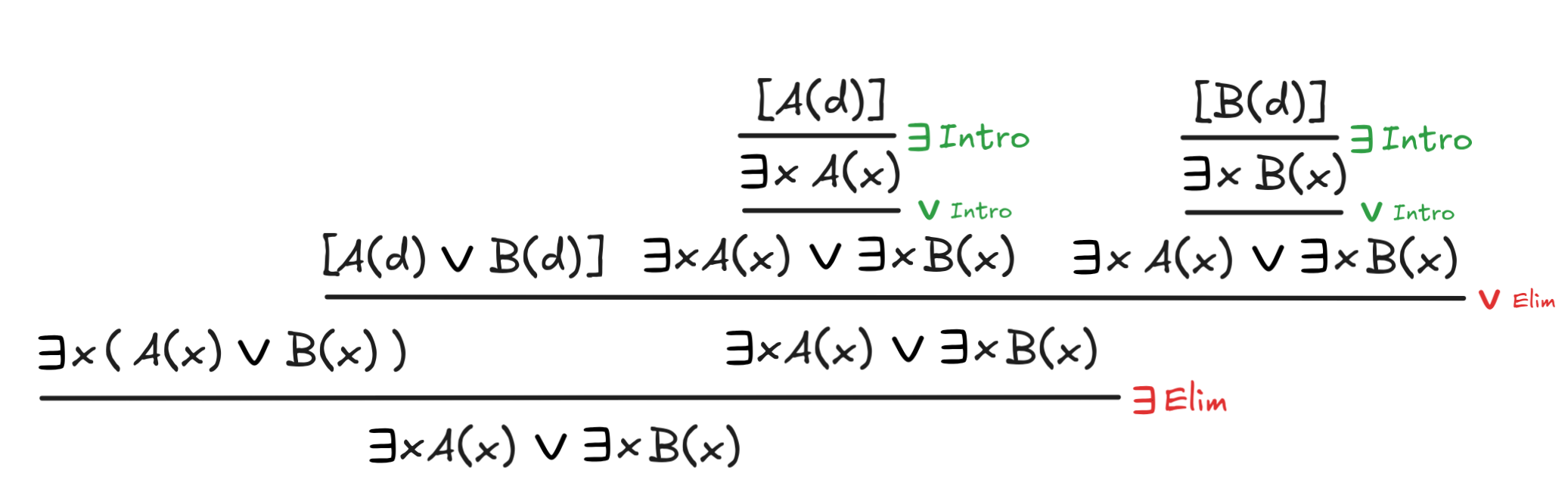

Natural deduction

Prove the laws below, as in Chapter 7 · Logical proofs. The levels are grouped into duality, distribution, and interaction. Goals lets you plan backwards; the rules menu also supports forward construction. Use Hint when you need a suggested next move. The domain is nonempty throughout.

Identify every use of the classical rule and every witness freshness condition.

Solution

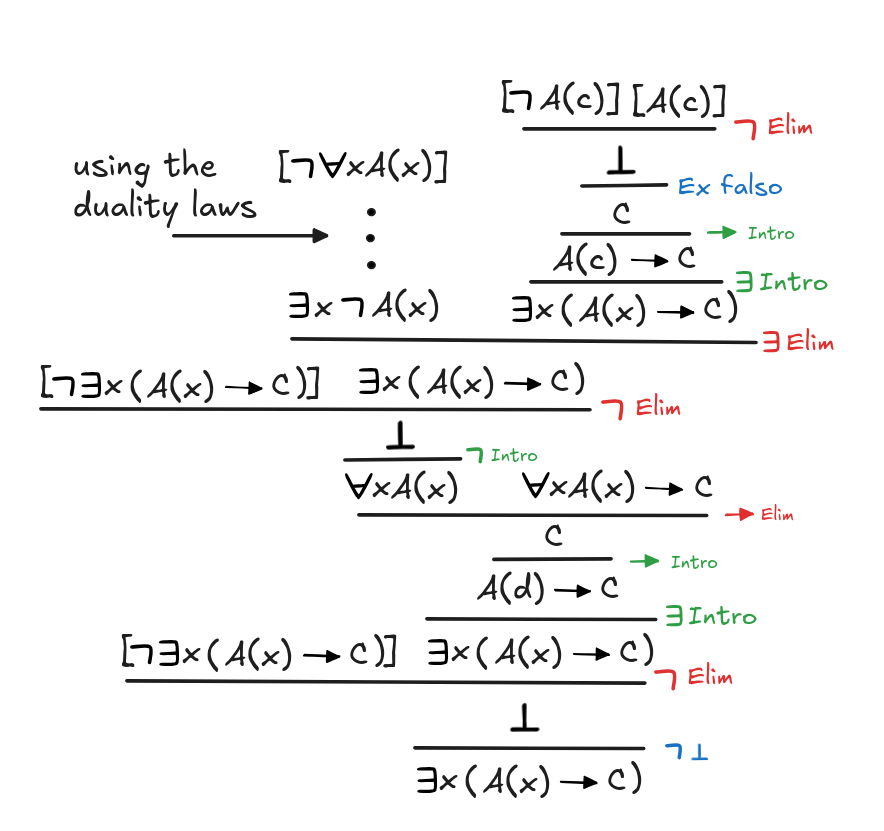

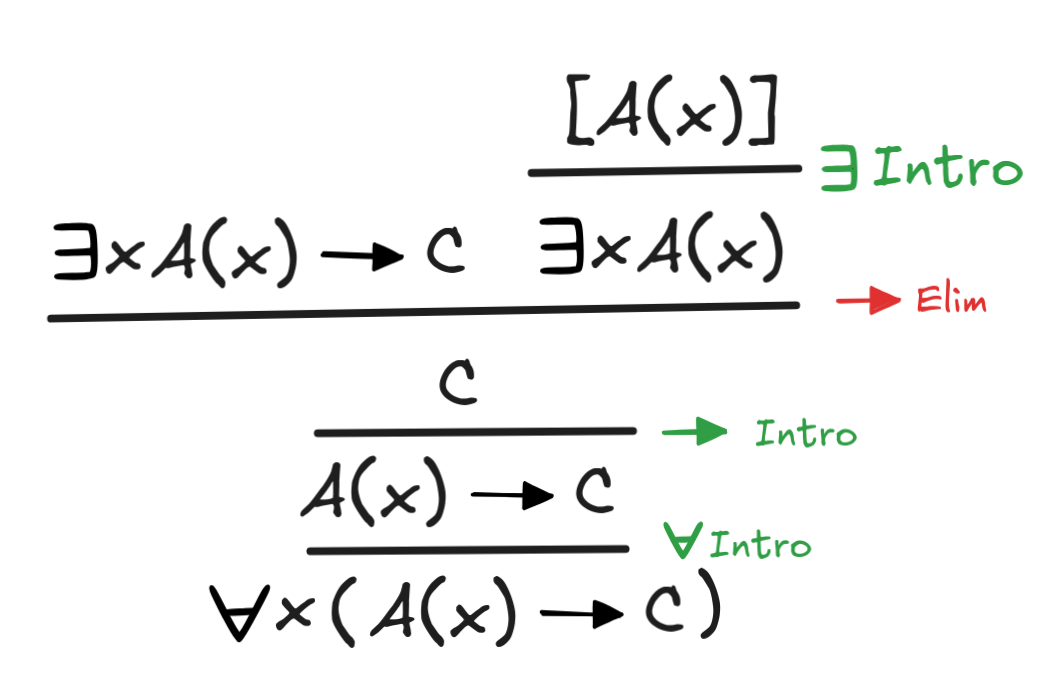

Duality 1 and Interaction 4 use classical reasoning. Interaction 1 and 4 use nonemptiness to supply an object. In each existential elimination, check that the temporary witness is absent from the conclusion and remaining assumptions.

Lean

Verify all twelve natural deduction inferences in Lean. Each block contains its own declarations and can be copied or opened in Lean. Replace each sorry with a proof using the commands from the chapter.

Domain represents the domain of a structure; A, B, and R represent predicate interpretations. [Inhabited Domain] supplies default : Domain. Identify where your proof uses this object and where it uses Classical.byContradiction.

Duality

variable (Domain : Type) [Inhabited Domain]
variable (A B : Domain → Prop) (R : Domain → Domain → Prop) (C : Prop)

-- Duality 1
example (h : ¬∀ x, A x) : ∃ x, ¬A x := by
  sorry

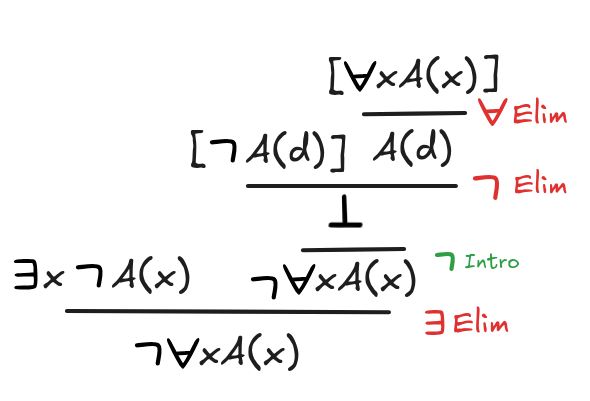

-- Duality 2
example (h : ∃ x, ¬A x) : ¬∀ x, A x := by
  sorry

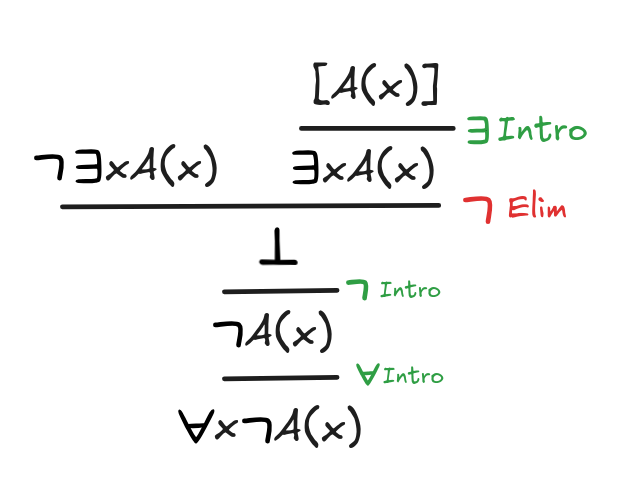

-- Duality 3
example (h : ¬∃ x, A x) : ∀ x, ¬A x := by
  sorry

-- Duality 4
example (h : ∀ x, ¬A x) : ¬∃ x, A x := by
  sorry

Distribution

variable (Domain : Type) [Inhabited Domain]
variable (A B : Domain → Prop) (R : Domain → Domain → Prop) (C : Prop)

-- Distribution 5
example (h : ∀ x, A x ∧ B x) : (∀ x, A x) ∧ (∀ x, B x) := by
  sorry

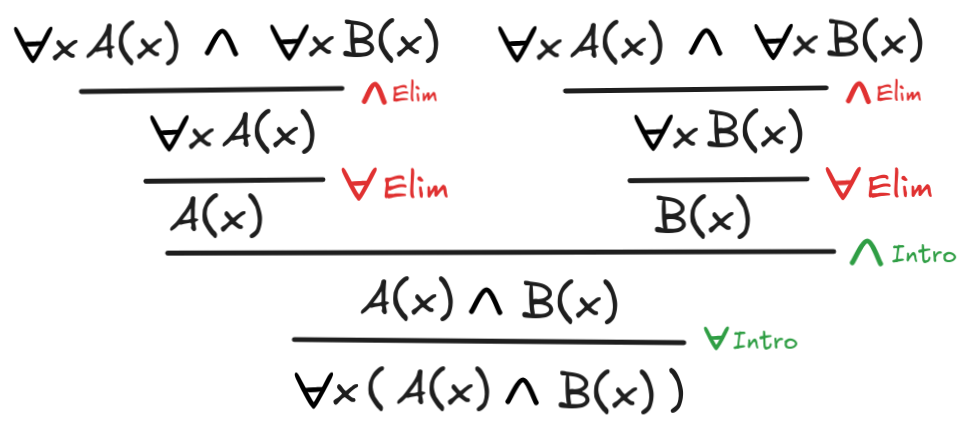

-- Distribution 6
example (h : (∀ x, A x) ∧ (∀ x, B x)) : ∀ x, A x ∧ B x := by
  sorry

-- Distribution 7
example (h : ∃ x, A x ∨ B x) : (∃ x, A x) ∨ (∃ x, B x) := by
  sorry

-- Distribution 8
example (h : (∃ x, A x) ∨ (∃ x, B x)) : ∃ x, A x ∨ B x := by
  sorry

Interaction

variable (Domain : Type) [Inhabited Domain]
variable (A B : Domain → Prop) (R : Domain → Domain → Prop) (C : Prop)

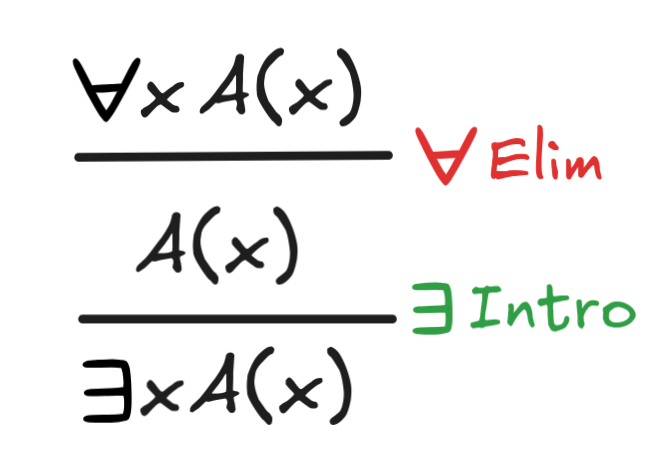

-- Interaction 9
example (h : ∀ x, A x) : ∃ x, A x := by
  sorry

-- Interaction 10
example (h : ∃ x, ∀ y, R x y) : ∀ y, ∃ x, R x y := by
  sorry

-- Interaction 11
example (h : (∃ x, A x) → C) : ∀ x, A x → C := by
  sorry

-- Interaction 12
example (h : (∀ x, A x) → C) : ∃ x, A x → C := by
  sorry

Solution

Quantifier laws adapted from the exercise solutions by Alexander Apers.

variable (Domain : Type) [Inhabited Domain]
variable (A B : Domain → Prop) (R : Domain → Domain → Prop) (C : Prop)

-- Duality 1
example (h : ¬∀ x, A x) : ∃ x, ¬A x := by
  apply Classical.byContradiction
  intro hn
  apply h
  intro x
  apply Classical.byContradiction
  intro hx
  apply hn
  apply Exists.intro x
  exact hx

-- Duality 2
example (h : ∃ x, ¬A x) : ¬∀ x, A x := by
  intro all
  apply Exists.elim h
  intro x hx
  exact hx (all x)

-- Duality 3
example (h : ¬∃ x, A x) : ∀ x, ¬A x := by
  intro x
  intro hx
  apply h
  apply Exists.intro x
  exact hx

-- Duality 4
example (h : ∀ x, ¬A x) : ¬∃ x, A x := by
  intro ex
  apply Exists.elim ex
  intro x hx
  exact (h x) hx
variable (Domain : Type) [Inhabited Domain]
variable (A B : Domain → Prop) (R : Domain → Domain → Prop) (C : Prop)

-- Distribution 5
example (h : ∀ x, A x ∧ B x) : (∀ x, A x) ∧ (∀ x, B x) := by
  apply And.intro
  · intro x
    exact And.left (h x)
  · intro x
    exact And.right (h x)

-- Distribution 6
example (h : (∀ x, A x) ∧ (∀ x, B x)) : ∀ x, A x ∧ B x := by
  intro x
  apply And.intro
  · exact (And.left h) x
  · exact (And.right h) x

-- Distribution 7
example (h : ∃ x, A x ∨ B x) : (∃ x, A x) ∨ (∃ x, B x) := by
  apply Exists.elim h
  intro x hx
  apply Or.elim hx
  · intro ha
    apply Or.inl
    apply Exists.intro x
    exact ha
  · intro hb
    apply Or.inr
    apply Exists.intro x
    exact hb

-- Distribution 8
example (h : (∃ x, A x) ∨ (∃ x, B x)) : ∃ x, A x ∨ B x := by
  apply Or.elim h
  · intro ha
    apply Exists.elim ha
    intro x hx
    apply Exists.intro x
    apply Or.inl
    exact hx
  · intro hb
    apply Exists.elim hb
    intro x hx
    apply Exists.intro x
    apply Or.inr
    exact hx
variable (Domain : Type) [Inhabited Domain]
variable (A B : Domain → Prop) (R : Domain → Domain → Prop) (C : Prop)

-- Interaction 9
example (h : ∀ x, A x) : ∃ x, A x := by
  apply Exists.intro (default : Domain)
  exact h default

-- Interaction 10
example (h : ∃ x, ∀ y, R x y) : ∀ y, ∃ x, R x y := by
  intro y
  apply Exists.elim h
  intro x hx
  apply Exists.intro x
  exact hx y

-- Interaction 11
example (h : (∃ x, A x) → C) : ∀ x, A x → C := by
  intro x
  intro hx
  apply h
  apply Exists.intro x
  exact hx

-- Interaction 12
example (h : (∀ x, A x) → C) : ∃ x, A x → C := by
  apply Classical.byContradiction
  intro hn
  apply hn
  apply Exists.intro (default : Domain)
  intro hd
  apply h
  intro x
  apply Classical.byContradiction
  intro hx
  apply hn
  apply Exists.intro x
  intro ax
  apply False.elim
  exact hx ax

Identity

From a=b and Human(a), derive Human(b). Then try deriving b=a from a=b: first use identity introduction to prove a=a, and choose a substitution formula that changes only its first occurrence of a.

Solution

Use Human(x) for the first substitution and x=a for the second. In each case x is the placeholder, a is the left-hand term, and b is the right-hand term of the identity. The second result is b=a.

What did the prover tell us?

We ask whether a conclusion follows from some first-order premises. What can we conclude in each case?

  1. A prover returns a formal proof, and a sound proof checker accepts it.
  2. A model finder returns a structure; checking it confirms that all premises are true and the conclusion is false.
  3. Both programs time out without returning either result.

Solution

  1. The conclusion follows in the formal system, subject to the checked assumptions. We still need to check that the formalization fits our question.
  2. The inference is invalid: we have a countermodel.
  3. We don’t yet know. A timeout is a fact about this search, not a proof of validity or invalidity.

What if the type were empty?

Lean’s type Empty has no objects. If a subproof nevertheless supplies x : Empty, Empty.elim x proves any proposition, just as False.elim uses an impossible assumption.

Use this to show why the nonempty-domain assumption matters in the two interaction laws. The code below takes Domain to be Empty, replaces A x by False, and, in the second law, takes C to be True. Prove that each instance of the proposed law is false.

example : ¬ ((∀ x : Empty, False) → ∃ x : Empty, False) := by
  sorry

example : ¬ (((∀ x : Empty, False) → True) → ∃ x : Empty, False → True) := by
  sorry

Solution

In the first instance, the universal antecedent is true because there are no objects. The existential consequent is false. In the second, the antecedent is true because its conclusion is True, but the existential consequent still needs an object.

example : ¬ ((∀ x : Empty, False) → ∃ x : Empty, False) := by
  intro h
  have all : ∀ x : Empty, False := by
    intro x
    exact Empty.elim x
  apply Exists.elim (h all)
  intro x hx
  exact hx

example : ¬ (((∀ x : Empty, False) → True) → ∃ x : Empty, False → True) := by
  intro h
  have premise : (∀ x : Empty, False) → True := by
    intro all
    exact True.intro
  apply Exists.elim (h premise)
  intro x hx
  exact Empty.elim x

Verify the Boolean derivations (advanced)

Return to the six tasks under Boolean laws . Translate your derivations into Lean using Boolean laws and equality substitution, as in the textbook’s double-negation example. Keep the steps of your written arguments visible instead of replacing them with a single automated proof.

  1. Verify task 1 from the two absorption laws, supplied as premises.
  2. Derive OR and AND idempotence for tasks 2 and 3, without using Bool.or_self or Bool.and_self. Again, take absorption as a premise.
  3. Verify task 4 by factoring out x, then using complementation and identity.
  4. Verify task 5 using distributivity, commutativity, complementation, and identity.
  5. Give the result of task 5 a name and use it inside negation to verify task 6. Lean’s Bool.not_and supplies the De Morgan law.

Run each proof in Lean. Then make one incorrect substitution and inspect the error.

Use these templates for the six tasks:

-- Task 1
example (x y : Bool)
    (andAbsorption : (x && (x || y)) = x)
    (orAbsorption : (x || (x && y)) = x) :
    (x && (x || y)) = (x || (x && y)) := by
  sorry

-- Task 2
example (x : Bool) (orAbsorption : (x || (x && true)) = x) : (x || x) = x := by
  sorry

-- Task 3
example (x : Bool) (andAbsorption : (x && (x || false)) = x) : (x && x) = x := by
  sorry

-- Task 4
example (x y : Bool) : ((x && y) || (x && !y)) = x := by
  sorry

-- Task 5
theorem booleanReduction (x y : Bool) : (x && (!x || y)) = (x && y) := by
  sorry

-- Task 6: use booleanReduction from task 5.
example (x y : Bool) : (!(x && (!x || y))) = (!x || !y) := by
  sorry

For reference, here are the notation and law tables from the chapter. The absorption names refer to the supplied premises; Eq.symm reverses an equality. Use only the laws permitted by each task.

Boolean notationLean expression
0false
1true
Xx : Bool
NOT X!x
X AND Yx && y
X OR Yx ∣∣ y
NOT NOT X = X(!!x) = x
LawBoolean identityLean proof
AssociativityX OR (Y OR Z) = (X OR Y) OR ZEq.symm (Bool.or_assoc x y z)
AssociativityX AND (Y AND Z) = (X AND Y) AND ZEq.symm (Bool.and_assoc x y z)
CommutativityX OR Y = Y OR XBool.or_comm x y
CommutativityX AND Y = Y AND XBool.and_comm x y
AbsorptionX OR (X AND Y) = XorAbsorption
AbsorptionX AND (X OR Y) = XandAbsorption
DistributivityX OR (Y AND Z) = (X OR Y) AND (X OR Z)Bool.or_and_distrib_left x y z
DistributivityX AND (Y OR Z) = (X AND Y) OR (X AND Z)Bool.and_or_distrib_left x y z
ComplementationX OR NOT X = 1Bool.or_not_self x
ComplementationX AND NOT X = 0Bool.and_not_self x
IdentityX OR 0 = XBool.or_false x
IdentityX AND 1 = XBool.and_true x
DominationX AND 0 = 0Bool.and_false x
DominationX OR 1 = 1Bool.or_true x
De MorganNOT (X OR Y) = (NOT X) AND (NOT Y)Bool.not_or x y
De MorganNOT (X AND Y) = (NOT X) OR (NOT Y)Bool.not_and x y
Double negationNOT NOT X = XBool.not_not x

Solution

For tasks 1–3, the absorption premises are instances of the laws from Boolean algebra. The proofs check that the requested equations follow from those premises. The remaining proofs use Lean’s Boolean laws directly. For substitution inside a function, use the congruence result proved with Eq.subst and rfl in Chapter 9 · Verifying a Boolean derivation. Its library name is congrArg. In task 6, the function is Bool.not.

-- Task 1: both sides equal x, by the two absorption premises.
example (x y : Bool)
    (andAbsorption : (x && (x || y)) = x)
    (orAbsorption : (x || (x && y)) = x) :
    (x && (x || y)) = (x || (x && y)) := by
  exact Eq.subst (Eq.symm orAbsorption) andAbsorption

-- Tasks 2 and 3: identity, then absorption.
example (x : Bool) (orAbsorption : (x || (x && true)) = x) :
    (x || x) = x := by
  have step_1 : (x || x) = (x || (x && true)) := by
    exact Eq.symm (congrArg (Bool.or x) (Bool.and_true x))
  exact Eq.subst orAbsorption step_1

example (x : Bool) (andAbsorption : (x && (x || false)) = x) :
    (x && x) = x := by
  have step_1 : (x && x) = (x && (x || false)) := by
    exact Eq.symm (congrArg (Bool.and x) (Bool.or_false x))
  exact Eq.subst andAbsorption step_1

-- Task 4: distribute backwards, then use complementation and identity.
example (x y : Bool) : ((x && y) || (x && !y)) = x := by
  have step_1 : ((x && y) || (x && !y)) = (x && (y || !y)) := by
    exact Eq.symm (Bool.and_or_distrib_left x y (!y))
  have step_2 : ((x && y) || (x && !y)) = (x && true) := by
    exact Eq.subst (congrArg (Bool.and x) (Bool.or_not_self y)) step_1
  exact Eq.subst (Bool.and_true x) step_2

-- Task 5: distribute, put the complementary pair on the right, then cancel it.
theorem booleanReduction (x y : Bool) : (x && (!x || y)) = (x && y) := by
  have step_1 : (x && (!x || y)) = ((x && !x) || (x && y)) := by
    exact Bool.and_or_distrib_left x (!x) y
  have step_2 : (x && (!x || y)) = ((x && y) || (x && !x)) := by
    exact Eq.subst (Bool.or_comm (x && !x) (x && y)) step_1
  have step_3 : (x && (!x || y)) = ((x && y) || false) := by
    exact Eq.subst (congrArg (Bool.or (x && y)) (Bool.and_not_self x)) step_2
  exact Eq.subst (Bool.or_false (x && y)) step_3

-- Task 6: reuse task 5 inside negation, then apply De Morgan.
example (x y : Bool) : (!(x && (!x || y))) = (!x || !y) := by
  have step_1 : (!(x && (!x || y))) = (!(x && y)) := by
    exact congrArg Bool.not (booleanReduction x y)
  exact Eq.subst (Bool.not_and x y) step_1
